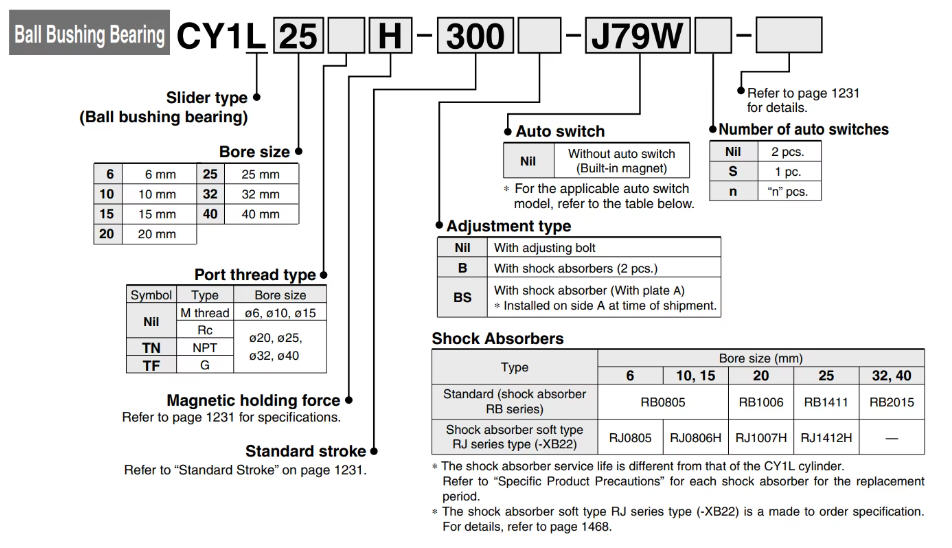

CY1L ø6 to ø40 Magnetically Coupled Ball Bushing Bearing Rodless Cylinder, CY1L Series


Bore size (mm)6101520253240
FluidAir
Proof pressure1.05 MPa
Maximum operating pressure0.7 MPa
Minimum operating pressure0.18 MPa
Ambient and fluid temperature–10 to 60°C   (No freezing)
Piston speed 50 to 500   mm/s
CushionRubber   bumper/Shock absorber
LubricationNot required   (Non-lube)
Stroke length tolerance (mm)0 to 250 st:   +1.0, 251 to 1000 st: +1.4 0, 1001 st and up: +1.8 0
Holding force (N)Type H19.653.9137231363588922
Type L--81.4154221358569
Standard equipmentAuto switch   mounting rail


Make an Enquiry
Contact Our Regis on ,
or perhaps you'd like to mail us for details.
Enquiry

REGIS HINTS

With no external moving parts, these air slides provide a long stroke, but have a static footprint—only the carriage on top moves. They have a magnetic piston so you can use them with sensors (not included) to activate relays and controllers.
