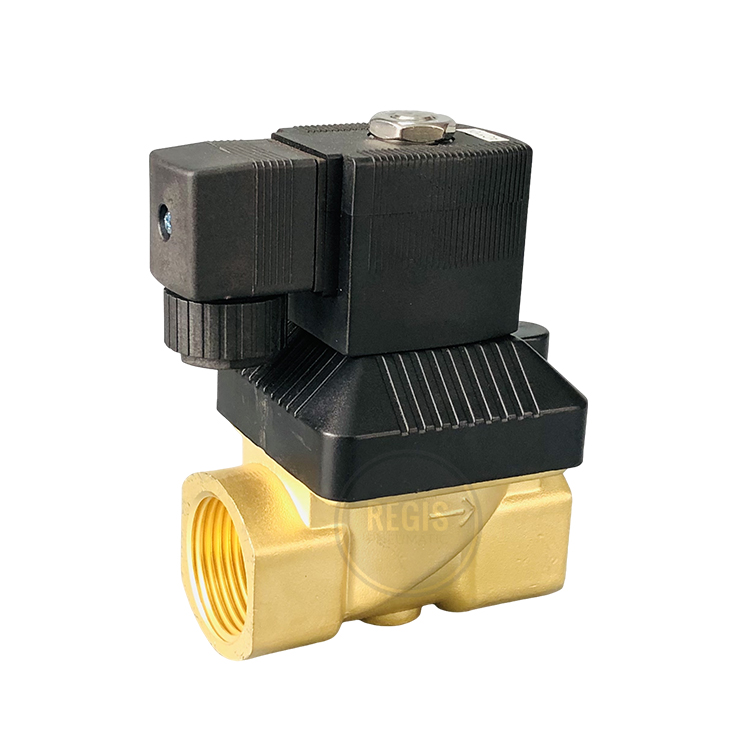

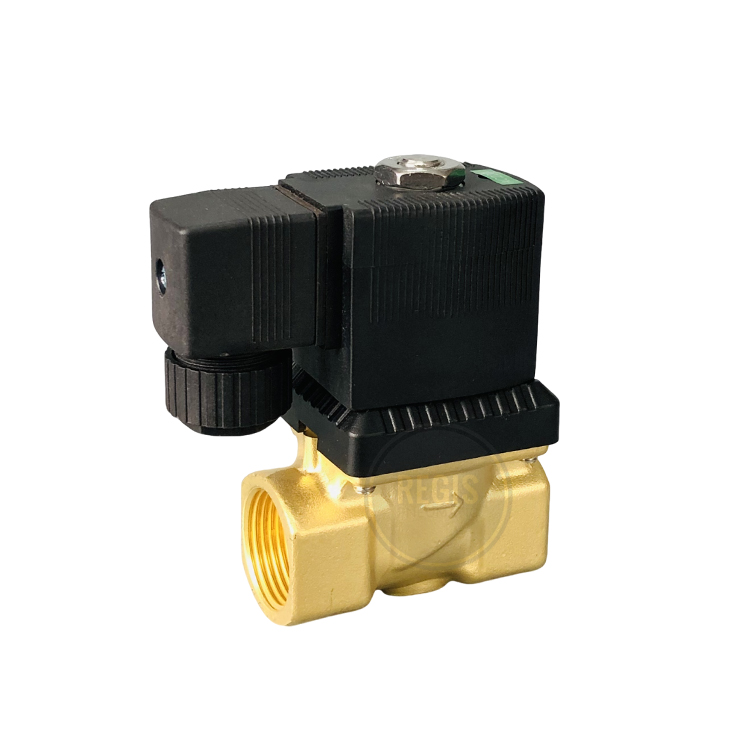

The 6213 type is a 2/2-way semi-direct solenoid valve.
The valve opens and closes by moving a flexible diaphragm.
It is mainly used for liquid or gaseous media with little or no differential pressure.
The operating process is supported by a spring coupled diaphragm and a plunger pilot control, which allows the valve to partially open without differential pressure.
The 6213 type solenoid valve features a wide range of materials, design options, and certifications to meet the needs of your application.
The Type 6213 is a 2/2-way normally closed solenoid valve with a forced coupled diaphragm system. It switches from 0 bar and can be used universally for fluids.
For complete opening, a differential pressure of at least 0.1 bar is necessary.
The body material: Brass
| Model | Port Size | Orifice(mm) | Material | Types | Working Pressure |
|---|---|---|---|---|---|
| R6213-08 | G1/4" | 10 | Forged Brass | Diaphragm Pilot / NC | 0.01-1.0Mpa |
R6213-08 solenoid valve for fluids 2-way 1/4” normally closed
Item R6213
Mfr. Model R6213-08/10/15/20/25
View Product Details
|
|||||
| R6213-10 | G3/8" | 10 | Forged Brass | Diaphragm Pilot / NC | 0.01-1.0Mpa |
R6213-10 solenoid valve for fluids 2-way 3/8” normally closed
Item R6213
Mfr. Model R6213-08/10/15/20/25
View Product Details
|
|||||
| R6213-15 | G1/2" | 14 | Forged Brass | Diaphragm Pilot / NC | 0.01-1.0Mpa |
R6213-15 solenoid valve for fluids 2-way 1/2” normally closed
Item R6213
Mfr. Model R6213-08/10/15/20/25
View Product Details
|
|||||
| R6213-20 | G3/4" | 20 | Forged Brass | Diaphragm Pilot / NC | 0.01-1.0Mpa |
R6213-20 solenoid valve for fluids 2-way 3/4” normally closed
Item R6213
Mfr. Model R6213-08/10/15/20/25
View Product Details
|
|||||
| R6213-25 | G1" | 25 | Forged Brass | Diaphragm Pilot / NC | 0.01-1.0Mpa |
R6213-25 solenoid valve for fluids 2-way 1” normally closed
Item R6213
Mfr. Model R6213-08/10/15/20/25
View Product Details
|
|||||
