The rod guided cylinder is a type of guided cylinder that combines ultra-high precision, excellent anti-lateral load capacity, double-acting drive, and powerful thrust in one unit.
Common Compact air cylinders include TN, CXSM, and MGPM series cylinders.

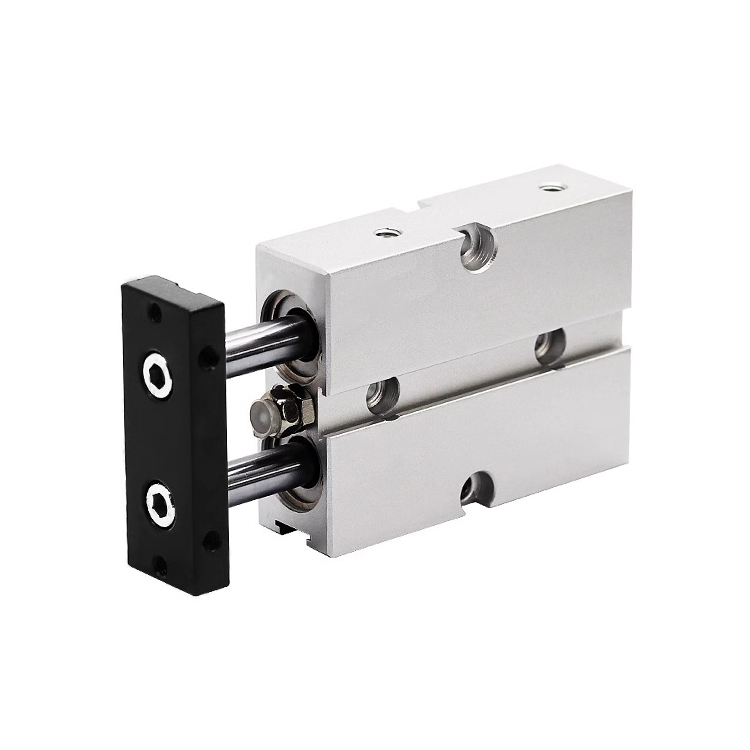

It is Airtac type Dual Rod Guided air cylinder.
The non-rotation accuracy of TN series double-shaft cylinder can reach 0.3 degrees in the 40ūm filtered air. The bore has 10mm, 16mm, 20mm, 25mm, 32mm,40mm,50mm seven types together. Normally it is without magnet. Magnet is optional.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| TN ø10 to ø32 | Multiple | M5 to G1/8 | Double Acting | 0.1-1.0Mpa | CS1-J / CMSJ |
TN ø10 to ø32 Dual Rod Guided Cylinder - Double Acting, TN Series
Item TN
Mfr. Model TN ø10 to ø32
View Product Details
|
|||||

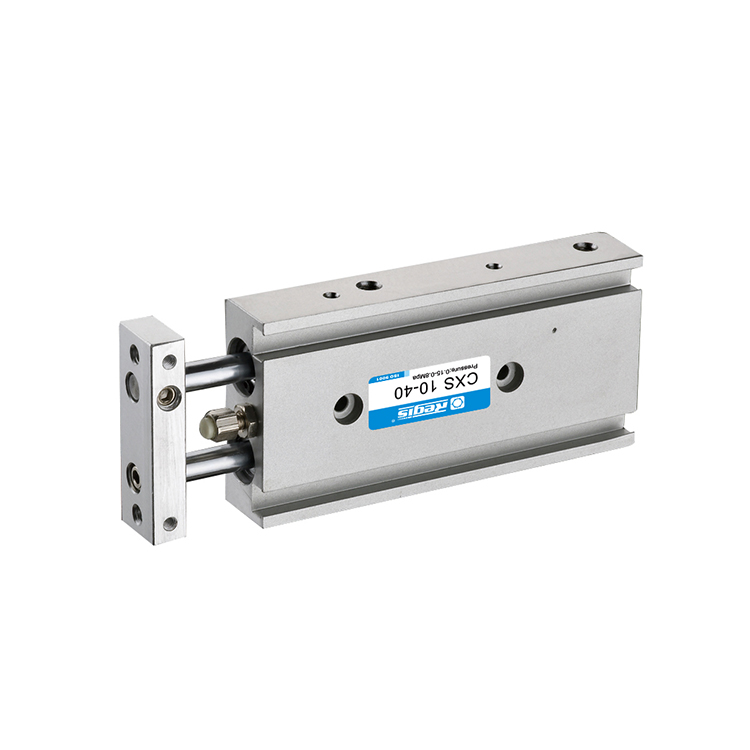

It is SMC type Dual Rod Guided air cylinder.
The bearing type is slide bearing type.
Dual-Rod Cylinder, Basic Type CXS Series with guide function that is suitable for picks and place applications, etc.
Features
• Ball bushing bearings and slide bearings are standard for all series.
• Can be mounted from 3 directions.
• Work pieces can be mounted on 3 surfaces.
• Air cushion only minimally adds to full length dimension.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| CXSM ø10 to ø32 | Multiple | M5 to G1/8 | Double Acting | 0.1-1.0Mpa | D-Z73 |
CXSM ø10 to ø32 Dual Rod Guided Cylinder - Slide Bearing - Double Acting, CXSM Series
Item
Mfr. Model CXSM ø10 to ø32
View Product Details
|
|||||

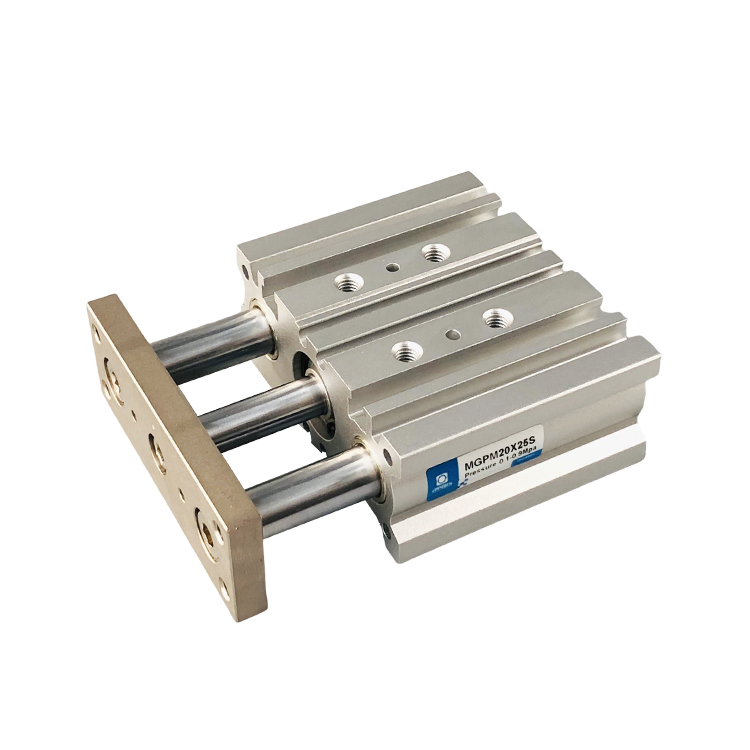

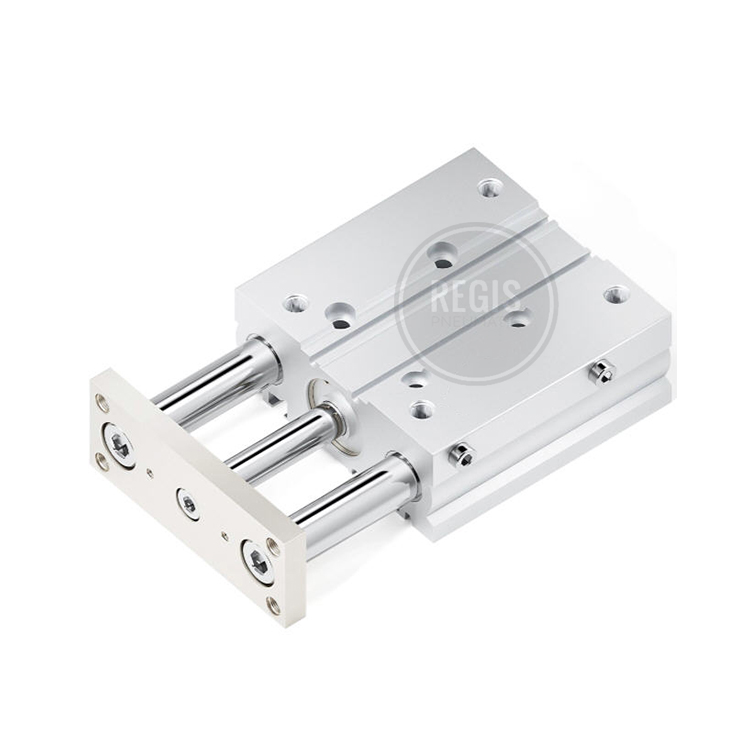

It is SMC type Compact Guided Three Axis air cylinder.
The bearing type is slide bearing type.
Three-shaft cylinder, Basic Type MGPM Series with guide function that is suitable for picks and place applications, etc.
Features
• Shortened guide rod.
• Saves space.
• By reducing the guide rod length by a maximum 22 mm, the machining required to create space between the bottom of the cylinder body and the equipment is reduced.
• Round auto switches and strong magnetic field resistant auto switches can be directly mounted without spacers.
• 4 types of mounting are possible.
• Piping from either direction.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| MGPM ø16 to ø100 | Multiple | M5 to G3/8 | Double Acting | 0.1-1.0Mpa | D-A93 |
MGPM ø16 to ø100 Compact Guided Cylinder - Slide Bearing - Double Acting, MGPM Series
Item MGPM
Mfr. Model MGPM ø16 to ø100
View Product Details
|
|||||
