SAV 2-Way Angle Seat Valve

SAV Valves are 2-way, 2-position pneumatic piston valves. The body material is stainless steel with stainless steel actuator. Female threaded port.

They can be normally closed (NC), normally open (NO), or double-acting. Piston actuators have threaded ports to allow direct installation of solenoid valves.

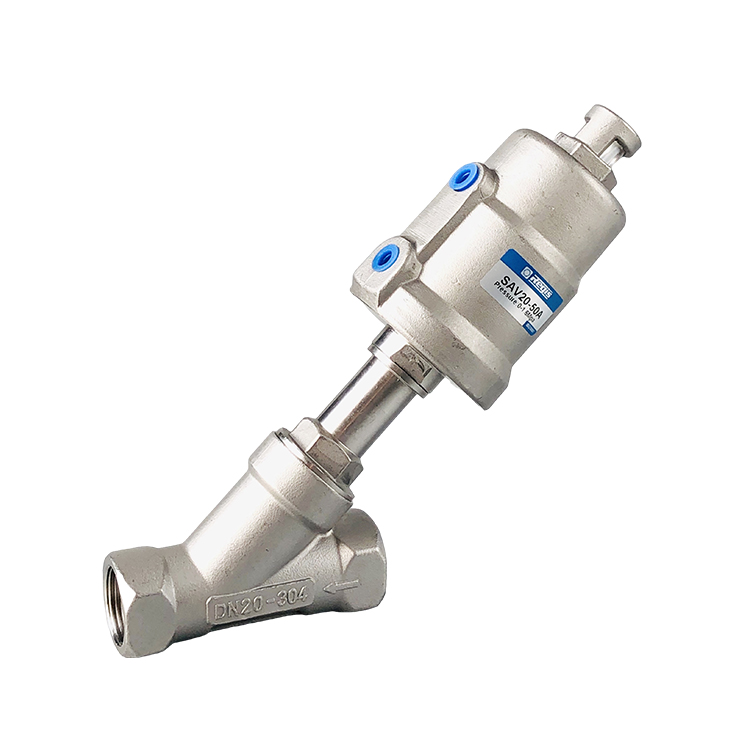

SAV 2-Way Angle Seat Valve

SAV 2-Way Angle Seat Valve Flange Connection

SAV 2-Way Angle Seat Valve

SAV Valves are 2-way, 2-position pneumatic piston valves. The body material is stainless steel with stainless steel actuator. Female threaded port.

They can be normally closed (NC), normally open (NO), or double-acting. Piston actuators have threaded ports to allow direct installation of solenoid valves

Model	Port Size	Body Material	Actuator Material	Controlling Pressure	Working Pressure
SAV10-40/50	G3/8	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV 3/8 Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV10-40,SAV10-50 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV15-40/50	G1/2	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV 1/2 Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV15-40,SAV15-50 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV20-50/63	G3/4	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV 3/4 angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV20-50/63 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV25-50/63	G1	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV25-50,SAV25-63 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV35-63/80	G1-1/4	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV35-63,SAV35-80 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV40-63/80	G1-1/2	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV40-63,SAV40-80 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV50-63/90	G2	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV50-63,SAV50-90 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV65-90	G2-1/2	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV65-90 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
SAV80-125	G3	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves 2-Way 2-Position Pneumatically Actuated Piston Valves Item SAV Mfr. Model SAV80-125 View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry

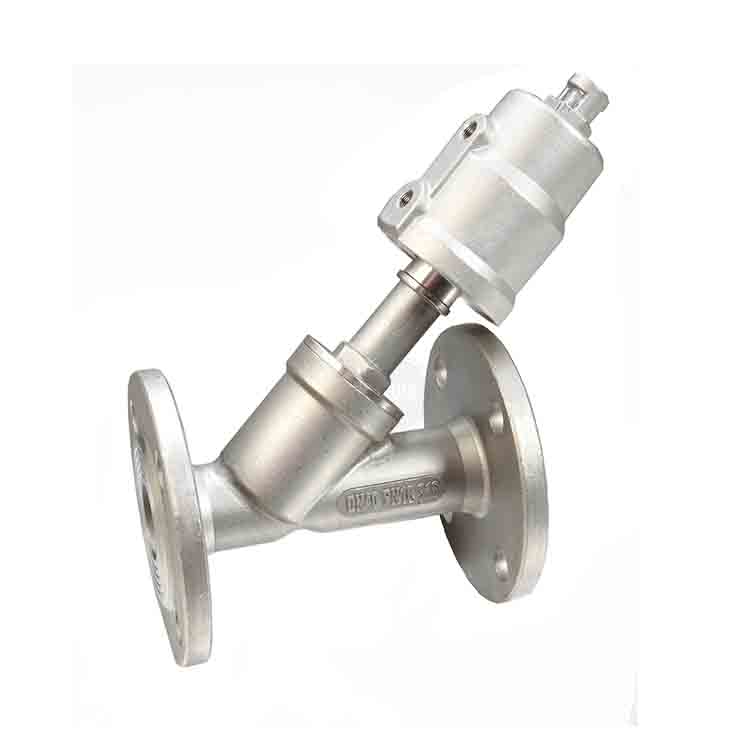

SAV 2-Way Angle Seat Valve Flange Connection

Pneumatically operated angle seat flange valve for high switching powers. In stainless steel design also suitable for neutral and aggressive media. The angled seat design offers a high flow rate, the flange connection offers easy installation.

Model	Port Size	Body Material	Actuator Material	Controlling Pressure	Working Pressure
SAV-F	G1/2-G3	CF8M	CF8	0.3-1.0Mpa	0-1.6Mpa
SAV Angle Seat Valves Flange Connection Pneumatically Actuated Piston Valves Item SAV-F Mfr. Model SAV50-63F,SAV65-90F,SAV80-125F View Product Details Make an Enquiry Contact Our Regis on , or perhaps you'd like to mail us for details. Enquiry
