Compact pneumatic cylinder is a kind pneumatic cylinder designed with a shorter overall length and lighter weight compared to other air cylinder, making it ideal for space-constrained industrial applications. With simplified structure and compact dimensions, allowing compact cylinder has easy installation in automated systems, especially in robotic arms, small machinery, and electronic assembly lines.
Common Compact air cylinders include SDA, CQ2, ADVU, ADVC, and ADN series cylinders.
It is SMC type compact cylinder. Ultra-thin air cylinder, renowned for its extreme compactness and lightweight design
There are through hole and both end female two fixing types. Male or female thread is optional on the piston rod .The bore size is from 12mm to 100mm. For the acting type we have double acting, double adjustable acting, single extend acting, single return acting etc
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| CQ2B ø12 to ø25 | Multiple | M5X0.8 | Double Acting | 0.15-1.0Mpa | NIL |
CQ2B ø12 to ø25 Compact Cylinder - Standard Type, Double Acting, CQ2 Series
Item CQ2
Mfr. Model CQ2B ø12 to ø25
View Product Details
|
|||||
| CDQ2B ø12 to ø25 | Multiple | M5X0.8 | Double Acting | 0.15-1.0Mpa | D-A93 / D-M9BL |
CDQ2B ø12 to ø25 Compact Cylinder – With Magnet, Double Acting, CQ2 Series
Item CQ2
Mfr. Model CDQ2B ø12 to ø25
View Product Details
|
|||||
| CDQ2B ø32 to ø100 | Multiple | G1/8 to G3/8 | Double Acting | 0.15-1.0Mpa | D-A93 / D-M9BL |
CDQ2B ø32 to ø100 Compact Cylinder - Standard Type, Double Acting, CQ2 Series
Item CQ2
Mfr. Model CDQ2B ø32 to ø100
View Product Details
|
|||||
| CDQ2A ø32 to ø100 | Multiple | G1/8 to G3/8 | Double Acting | 0.15-1.0Mpa | D-A93 / D-M9BL |
CDQ2A ø32 to ø100 Compact Cylinder - Standard Type, Double Acting, CQ2 Series
Item CQ2
Mfr. Model CDQ2A ø32 to ø100
View Product Details
|
|||||
It is Airtac type compact cylinder. The bore from 12mm to 100mm is optional. As to the acting type we have double acting, double adjustable acting, single extend acting, single return acting etc. The rod side teeth within conventional-shaped teeth, outer teeth, toothless three kinds of connections. The crash pads buffer types effectively reduce the impact on the cover.
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| SDA ø12 to ø16 | Multiple | M5X0.8 | Double Acting | 0.15-1.0Mpa | CMSJ / DMSJ |
SDA ø12 to ø16 Compact Cylinder - Small Type, Double Acting, SDA Series
Item SDA
Mfr. Model SDA ø12 to ø16
View Product Details
|
|||||
| SDA ø20 to ø100 | Multiple | G1/8 to G3/8 | Double Acting | 0.15-1.0Mpa | CMSJ / DMSJ |
SDA ø20 to ø100 Compact Cylinder -Standard Type, Double Acting, SDA Series
Item SDA
Mfr. Model SDA ø20 to ø100
View Product Details
|
|||||
| STA SSA ø12 to ø100 | Multiple | G1/8 to G3/8 | Single Acting | 0.15-1.0Mpa | CMSJ / DMSJ |
SDA ø12 to ø100 Compact Cylinder – Spring Return Spring Extend, Single Acting
Item SDA
Mfr. Model STA SSA ø32 to ø100
View Product Details
|
|||||
Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562.
Features:
Very short overall length
High forces in a compact size
Piston rod with internal or external thread
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| ADVC ø4 to ø25 | Multiple | M5X0.8 | Double Acting | 0.1-1.0Mpa | Nil |

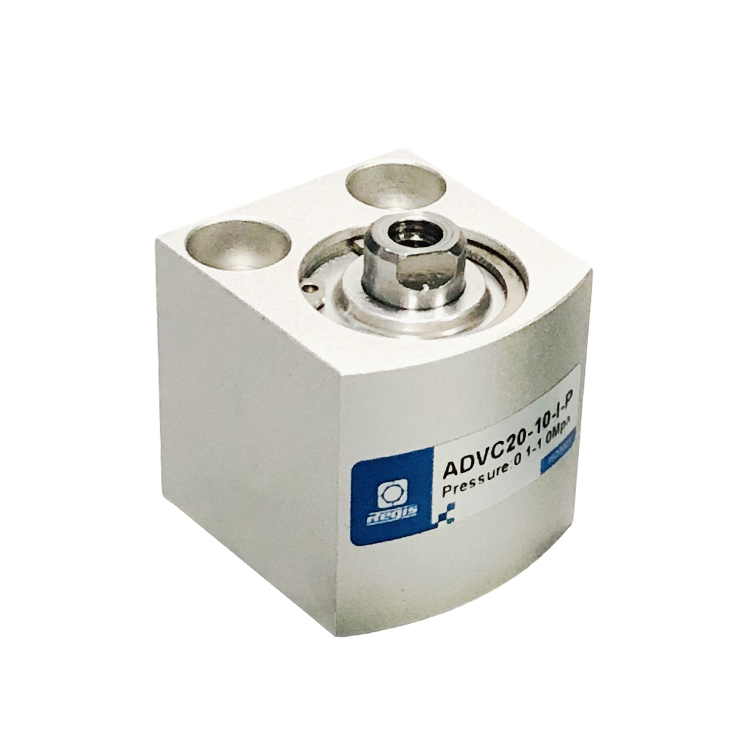

ADVC ø4 to ø25 No Magnet Compact Short Stroke Air Cylinder
Item ADVC
Mfr. Model ADVC ø4 to ø25 I-P / A-P
View Product Details
|
|||||
| ADVC ø6 to ø25 | Multiple | M5X0.8 | Double Acting | 0.1-1.0Mpa | D-M9BL |
ADVC ø6 to ø25 w/ Magnet Compact Short Stroke Air Cylinder
Item ADVC
Mfr. Model ADVC ø6 to ø25 I-P-A / A-P-A
View Product Details
|
|||||
| AEVC ø4 to ø25 | Multiple | M5X0.8 | Single Acting | 0.1-1.0Mpa | Nil |
AEVC ø4 to ø25 No Magnet Single Acting Compact Short Stroke Air Cylinder
Item ADVC
Mfr. Model AEVC ø4 to ø25 I-P / A-P
View Product Details
|
|||||
| AEVC ø6 to ø25 | Multiple | M5X0.8 | Single Acting | 0.1-1.0Mpa | D-M9BL |
AEVC ø6 to ø25 w/ Magnet Single Acting Compact Short Stroke Air Cylinder
Item ADVC
Mfr. Model AEVC ø6 to ø25 I-P-A / A-P-A
View Product Details
|
|||||
It is Festo type compact cylinder.
Single-acting or double-acting cylinder with wide a variety of mounting options.
• 50% less installation space than comparable standards-based cylinders to ISO 15552
• Wide range of variants for customized applications
• Piston rod with female or male thread
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|---|---|---|---|---|
| ADVU ø12 to ø125 | Multiple | M5 to G1/4 | Double Acting | 0.1-1.0Mpa | CS1-M / CMSG |
ADVU ø12 to ø125 Compact Air Cylinder
Item ADVU
Mfr. Model ADVU ø12 to ø125 -P-A / A-P-A
View Product Details
|
|||||
| ADVU-S2 ø12 to ø125 | Multiple | M5 to G1/4 | Double Acting | 0.1-1.0Mpa | CS1-M / CMSG |
ADVU-S2 ø12 to ø125 Double Shaft Compact Air Cylinder
Item ADVU
Mfr. Model ADVU-S2 ø12 to ø125 -P-A / A-P-A
View Product Details
|
|||||
| AEVU ø12 to ø125 | Multiple | M5 to G1/4 | Single Acting | 0.1-1.0Mpa | CS1-M / CMSG |
AEVU ø12 to ø125 -P-A / A-P-A Single Acting Compact Air Cylinder
Item ADVU
Mfr. Model AEVU ø12 to ø125 -P-A / A-P-A
View Product Details
|
|||||
| ADVUL ø12 to ø125 | Multiple | M5 to G1/4 | Double Acting | 0.1-1.0Mpa | CS1-M / CMSG |
ADVUL ø12 to ø125 -P-A / A-P-A Compact Air Cylinder
Item ADVUL
Mfr. Model ADVUL ø12 to ø125-P-A / A-P-A
View Product Details
|
|||||
It is Festo type compact cylinder.
ISO cylinder to ISO 21287 with fixed or self-adjusting cushioning with high variance.
• ISO 21287
• Up to 50% less installation space than comparable standards-based cylinders to ISO 15552
• Piston rod with female or male thread
• Wide range of variants for customized applications
| Bore Size | Stroke Length | Port Size | Acting Type | Working Pressure | Magnet Switch |
|---|
